XY-2F Engineering Exploration Core Drilling Machine

Payment Terms:	T/T,L/C,D/A
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XY-2F

Packing: wooden case

Application: Others

Brand Name: GOLD

Means of Transport: Ocean,Air

Delivery Date: 2 weeks

Type: Drilling Rig

water well drilling rig: mounted drilling rig

It's used in soil anchoring hole, anchoring bar and engineering geological, hydro-geological, water well and pile grouting hole drilling.

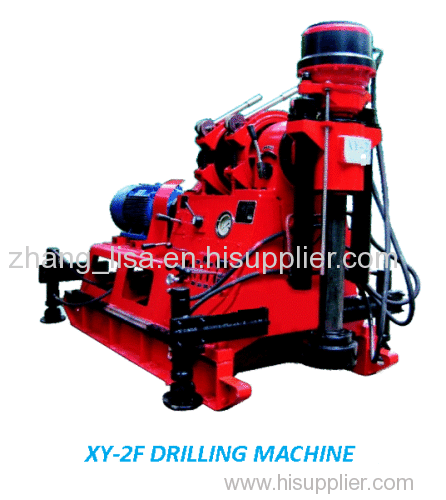

XY-2F Mobile core drill rig is derived from XY-2 drill rig, it can move conveniently because adding walking device base on XY-2 rig. It is small and light-weighted, mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in soil anchoring hole, anchoring bar and engineering geological, hydro-geological, water well and pile grouting hole drilling.It's light weight, compact, good quality, powerful, wide performance, good versality.

Technical Specifications

Drilling capacity(m)	73 rod	100(300 mm hole dia.)
	60 rod	320
	50 rod	380
	42 rod	530
	AQ wire line rod	565
	BQ wire line rod	460
	NQ wire line rod	350
Spindle speed(r/min)	Forward	65;114;180;248;310;538;849;1172
Spindle speed(r/min)	Reverse	51;242
Max torque (Nm)		2900
Angle range		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		600
Hoist max life capacity with single rope (KN)		30
Stroke of walking device		450mm/stroke
Spindle inner dia (mm)		Φ76
Oil pump		CBK1020/8Twin-geal oil pump
Power unit	Electric motor	Y180L-4,22Kw
Power unit	Diesel engine	395K2,19.85Kw
Dimension(mm)		2150×900×1690
Drill body weight (excluding power)(kg)		950
